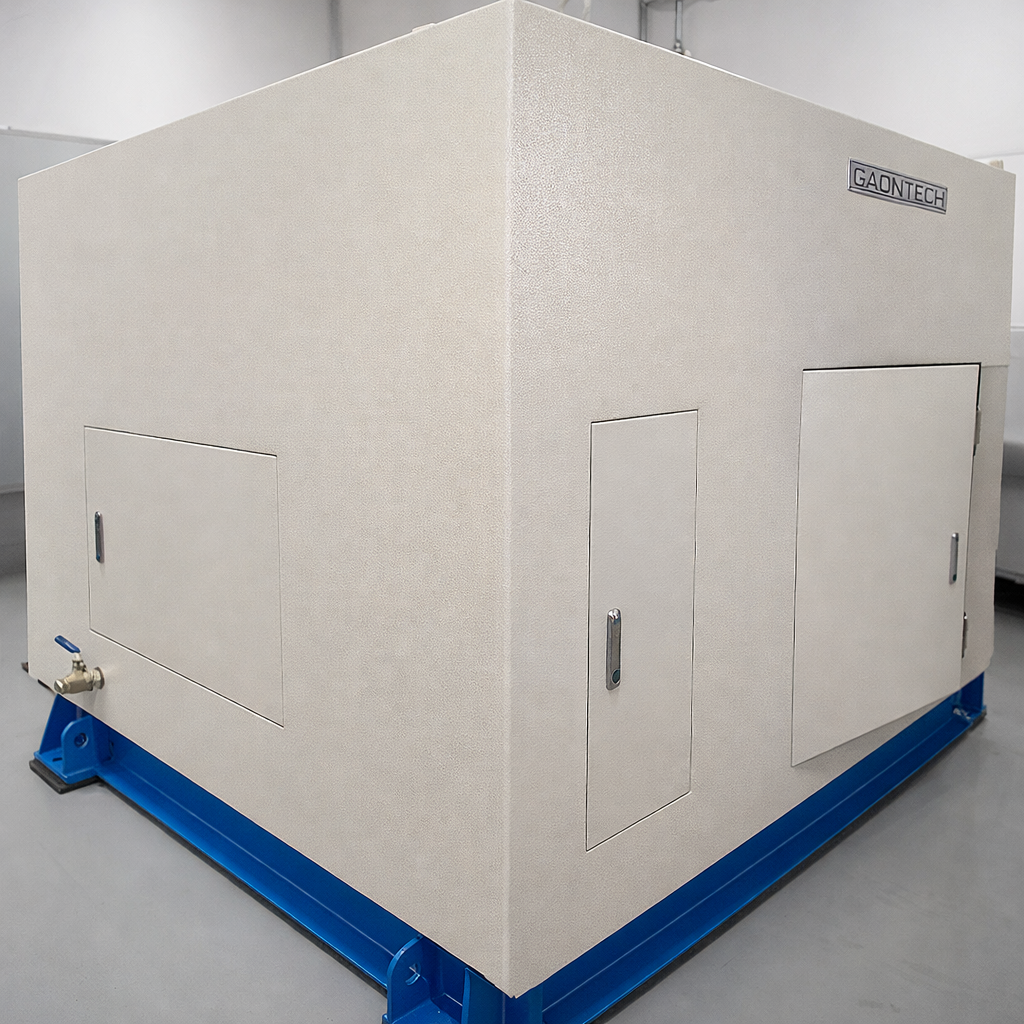

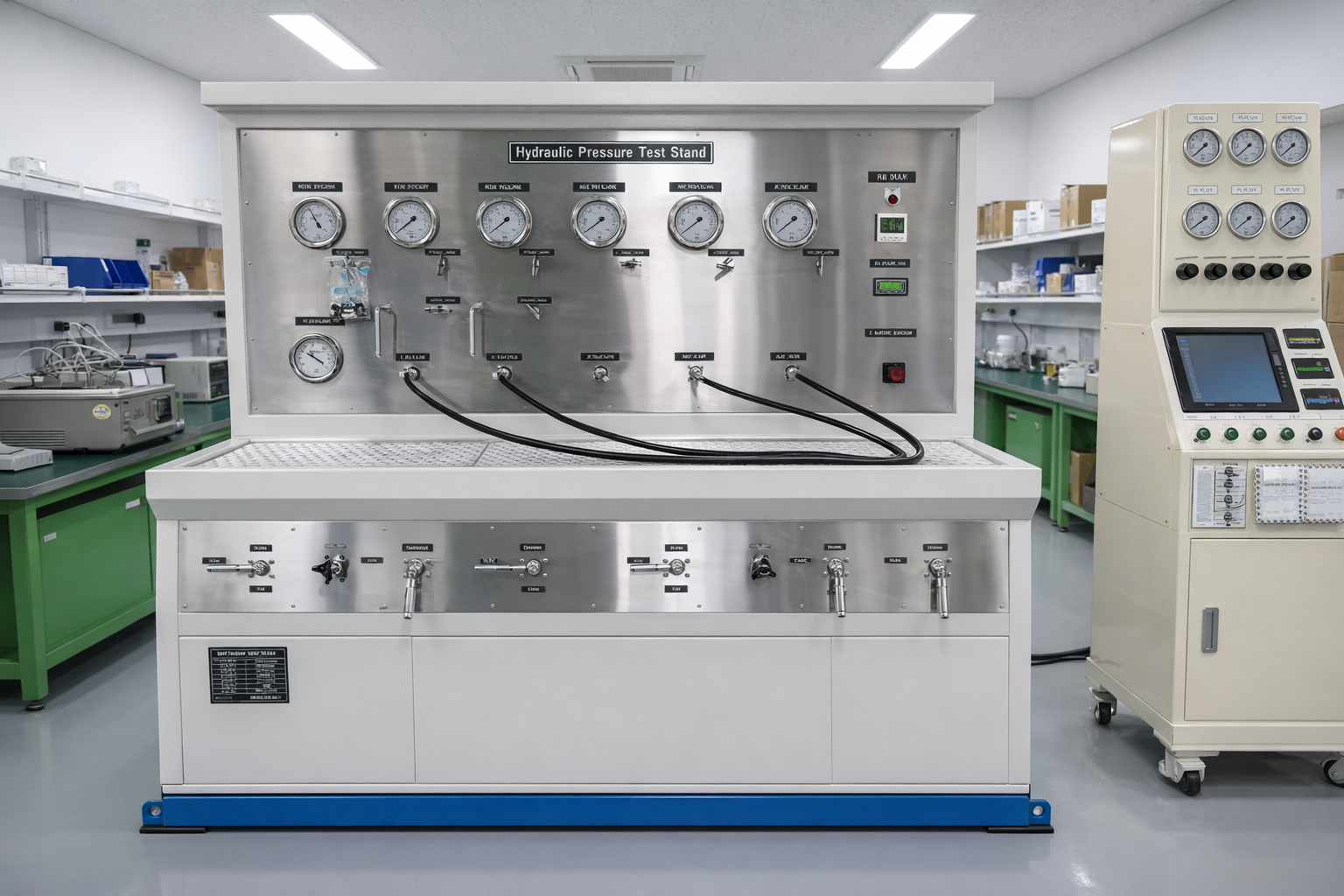

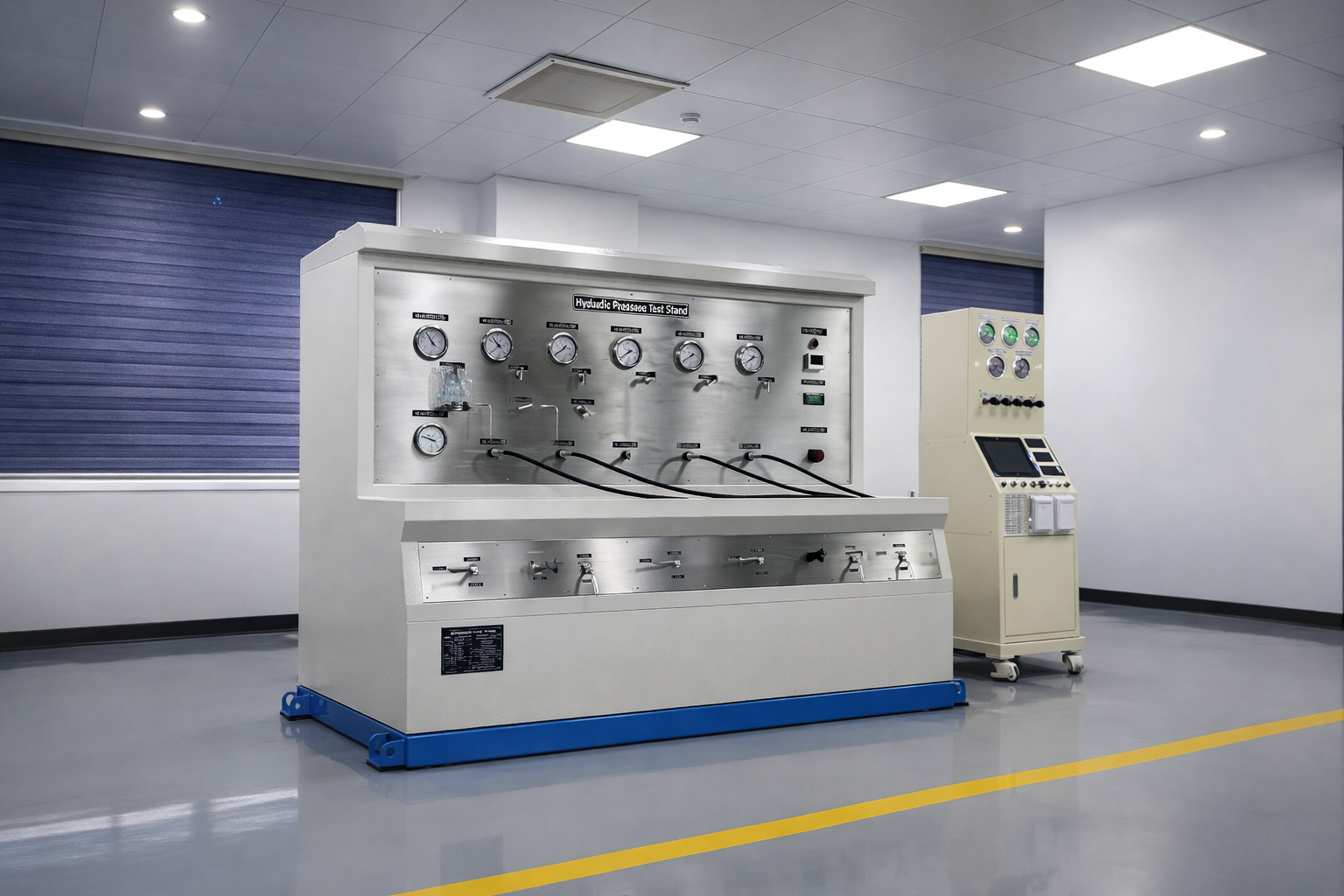

Fixed Hydraulic Test Stand (MODEL : GHPTS-5000)

Fixed Hydraulic Test Stand (MODEL : GHPTS-5000

)

The GHPTS-5000 Fixed Hydraulic Test Stand is a high-performance testing system designed for military and industrial hydraulic component verification.

Engineered to operate under high-pressure conditions up to 5,000 psi, the system provides precise flow, pressure, and dynamic cycling performance evaluation.

Built to meet MIL-standard hydraulic oil requirements, the GHPTS-5000 ensures reliable and repeatable testing for aerospace, defense, and heavy industrial applications.

• KEY FEATURES

  • Applicable Hydraulic Fluids
  MIL-H-83282 or MIL-H-5605

  • Power Requirement
  460V AC, 60Hz, 3 Phase

  • Variable Speed Drive
  Bi-directional, up to 5,000 rpm

  • Dynamic Cycling Test Capability
  3,500 psi at 30 gpm
  Up to 5,000 psi during deceleration

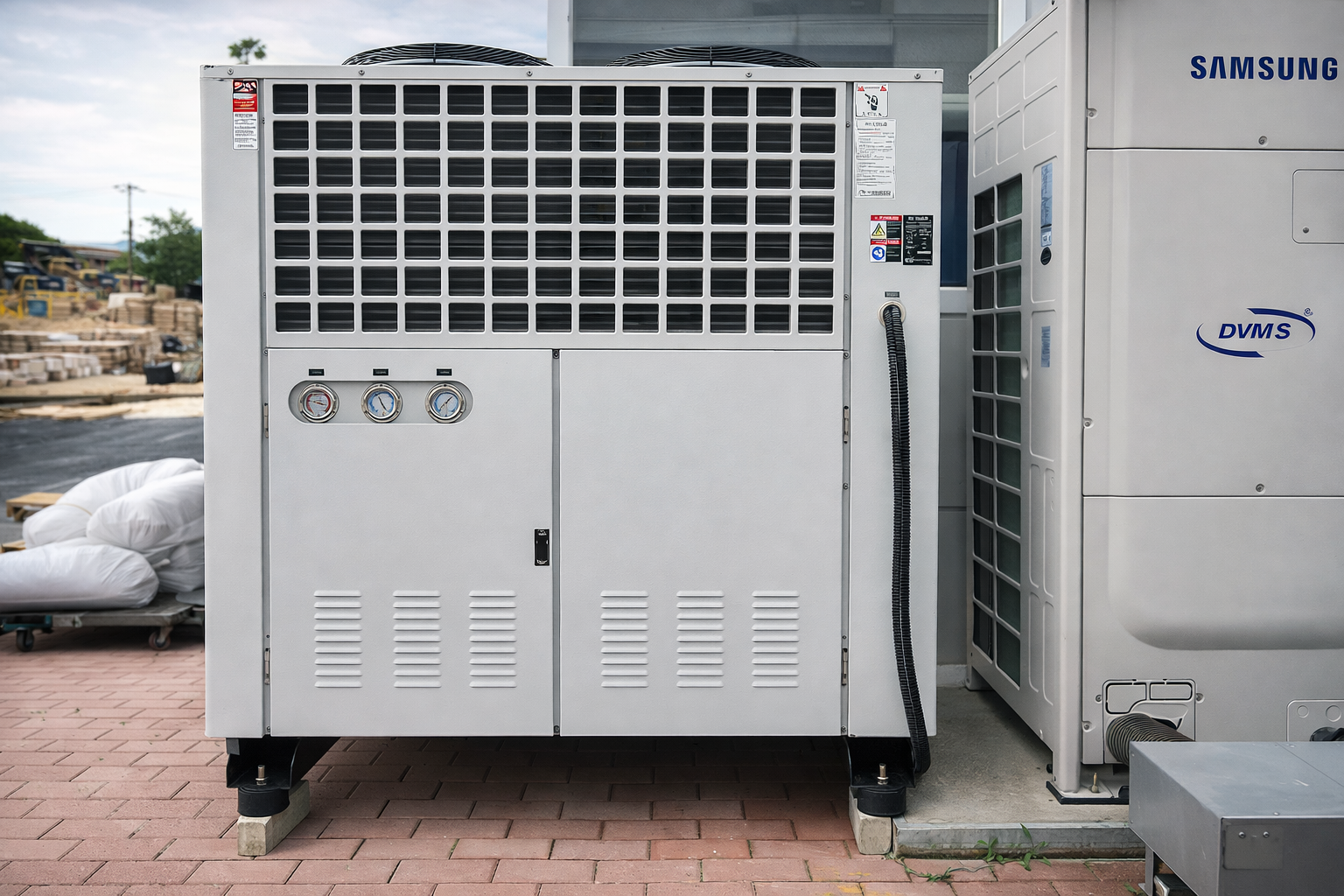

  • Temperature Control System
  Cooling range 80°F – 160°F
  Cooling capacity 50 gpm

• KEY ADVANTAGES

  • High-Pressure Testing Capability
  Operation up to 5,000 psi

  • Precision Flow Control
  2–36 gpm range with ±1% accuracy

  • Large Reservoir Capacity
  95 Gallons (360 liters)

  • High-Power Motor Configuration
  Main 75HP + Booster 5HP

  • Advanced Filtration System
  High-pressure 3 micron / Low-pressure 10 micron

---

---

• MAIN SPECIFICATIONS

  • Power Supply
  460V AC / 60Hz / 3 Phase

  • Hydraulic Fluid
  MIL-H-83282 or MIL-H-5605

  • Reservoir Capacity
  95 Gallons (360 liters)

  • Motor Power
  Main 75HP / Booster 5HP

  • Flow Range
  2 – 36 gpm (±1%)

  • Maximum Pressure
  5,000 psi

  • Filtration Capacity
  3μm (High Pressure) / 10μm (Low Pressure)

• APPLICATIONS & BENEFITS

• Military Aerospace Hydraulic Testing
Verification of hydraulic components and assemblies

• Defense Industry Testing
Endurance and reliability evaluation under high pressure

• Industrial Hydraulic Component Validation
Pumps, valves, actuators, and hydraulic systems

• Accurate Data Acquisition
Quantitative analysis of flow, pressure, and operational characteristics

• Improved Testing Efficiency
High-power configuration ensures stable and repeatable testing performance

• CUSTOM MANUFACTURING

  • This system can be custom-designed according to required pressure range, flow capacity, motor output, and testing environment.
  • Reservoir size, cooling capacity, filtration level, and control interface can be configured based on customer requirements.
  • Dedicated engineering support is available to meet military and aerospace testing standards.

• INQUIRY

  For detailed specification discussion, hydraulic test system development, and applications in military, aerospace, and industrial sectors,
  please feel free to contact us at any time.
