E-SHUNTER (sl50e)

Electric Shunter – SL50E

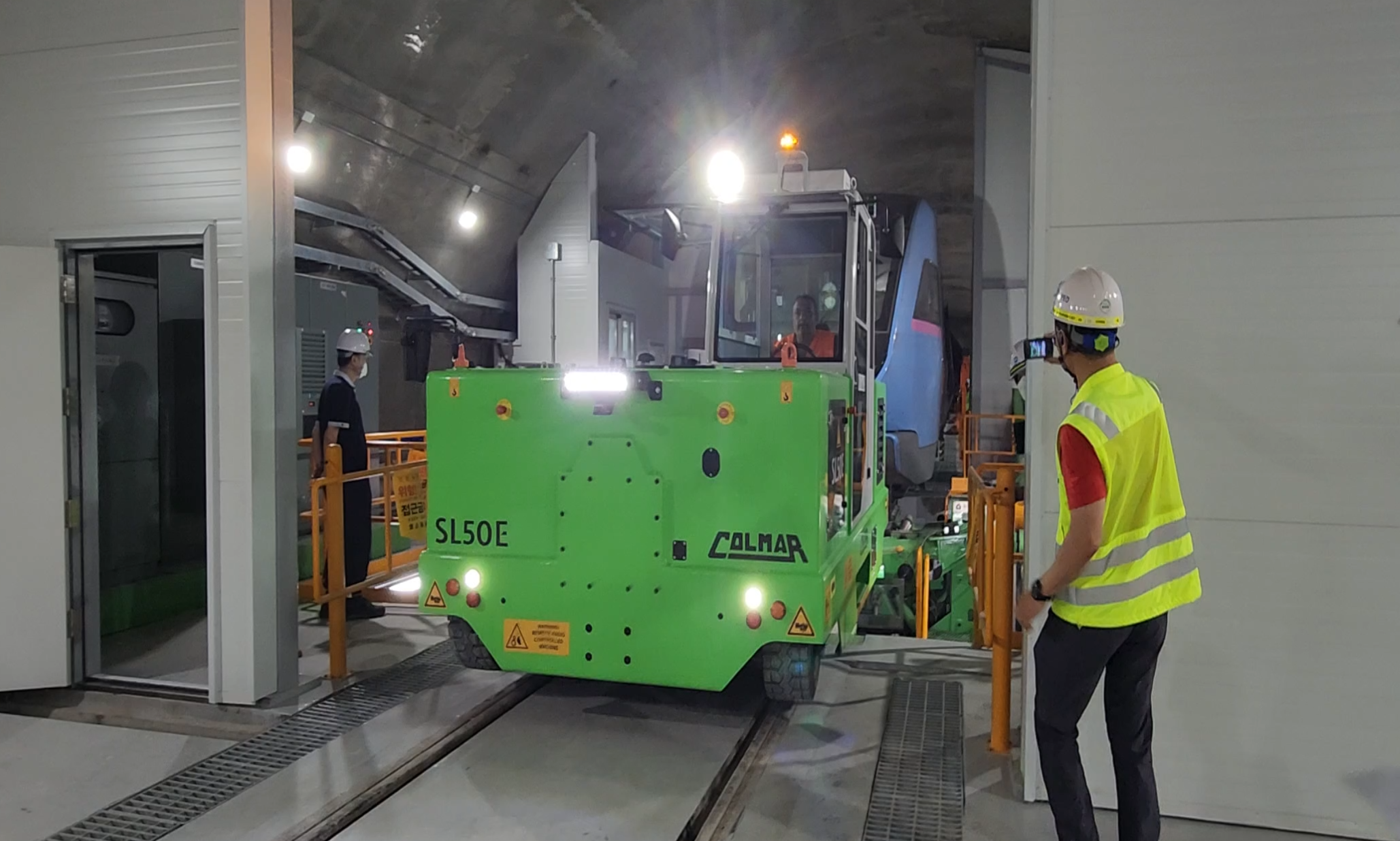

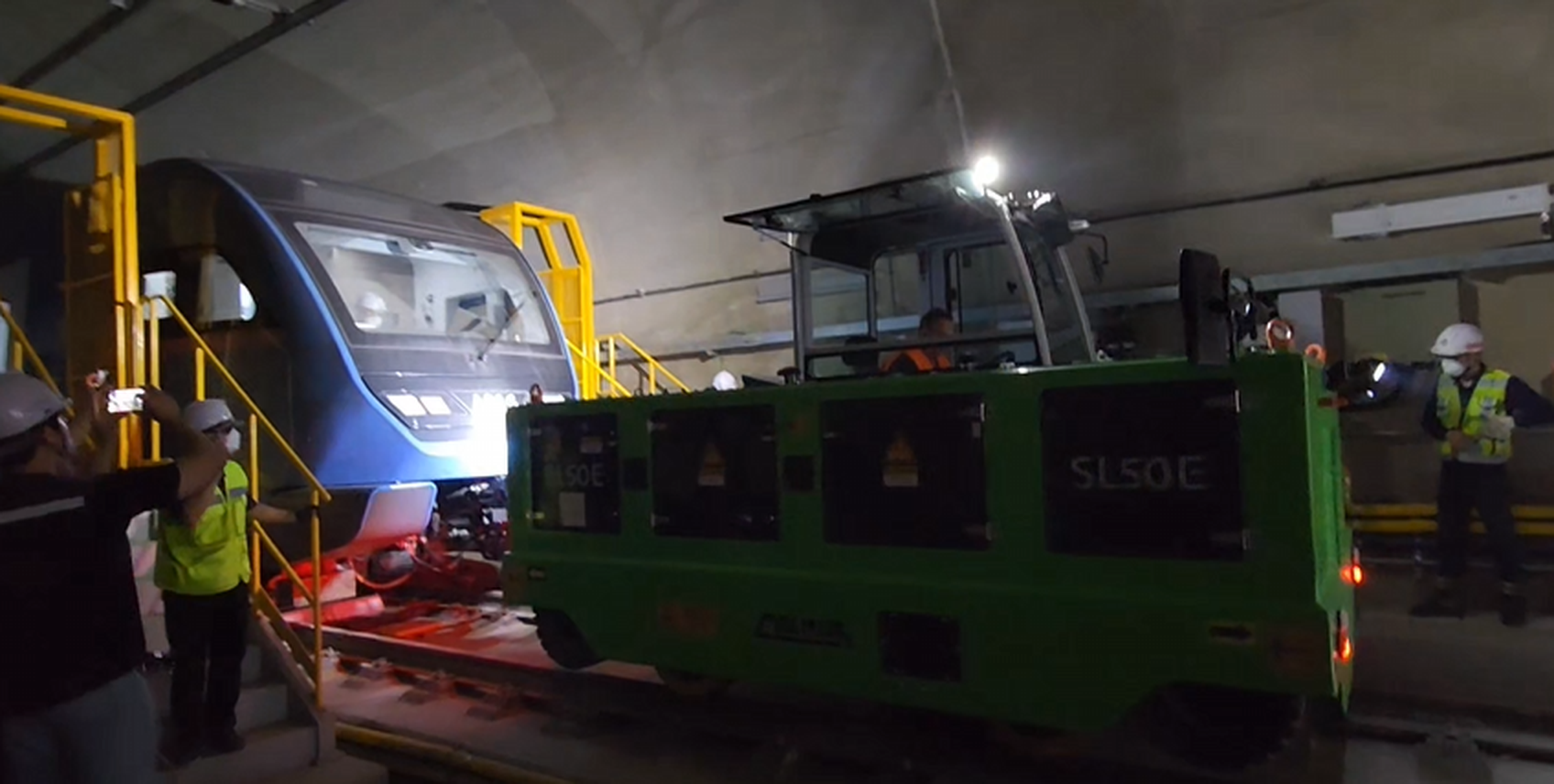

The SL50E Electric Shunter is designed for efficient railway vehicle shunting operations. It is optimized for use in rolling stock depots and railway maintenance facilities, enabling the stable and precise movement of heavy rail vehicles.

Equipped with a fully electric drive system, the SL50E produces zero emissions and reduces maintenance costs compared to conventional diesel-powered units.

With a maximum tractive capacity of up to 1,000 tons and a high-strength chassis structure, the SL50E delivers reliable performance even in demanding heavy-duty railway operating environments.

• Key Features

• Reinforced Chassis Structure
  Heavy-duty frame optimized for high-load shunting operations.

• Battery System
  High-capacity battery enables extended working time.

• Operational Stability
  Designed with balanced weight distribution for secure and smooth rail vehicle movement.

• High-Performance Electric Motor
  30 kW electric drive motor provides strong traction and high energy efficiency.

• Precision Control System
  Accurate speed and torque control minimize vehicle shock and improve handling.

• Key Advantages

• Zero-Emission Electric Drive
  Safe for indoor depots and urban rail environments with no exhaust emissions.

• High Tractive Performance
  Capable of moving rail vehicles up to 1,000 tons.

• Reduced Operating & Maintenance Costs
  Electric drive system lowers fuel consumption and maintenance requirements.

• Enhanced Safety Design
  Equipped with multiple safety systems to ensure stable operation during heavy-duty tasks.

• Remote Control Capability
  Improves operational efficiency and operator safety.

---

---

• Main Specifications (Customizable)

• Gauge: 1,435 mm

• Maximum Tractive Capacity: 1,000 tons

• Operating Speed:

  • Free running: 6 km/h

  • With load: 3 km/h

• Motor Output: 30 kW (Electric Drive)

• Battery Capacity: 1,000 Ah / 80 V

• Protection Rating: IP54

• Control Method: Rem

• Applications & Benefits

• Railway Maintenance Depots
  Suitable for shunting operations in high-speed rail, metro, and conventional rail facilities.

• Heavy Train Formation Handling
  Stable movement of large train sets during inspection and maintenance.

• Improved Workflow Efficiency
  Faster and safer vehicle positioning enhances overall maintenance productivity.

• Enhanced Working Environment
  Low-noise and emission-free operation improves workplace conditions.

• Custom Manufacturing

  The SL50E can be customized according to required tractive capacity, route conditions, battery specifications, control systems, and site operating environments. Dedicated engineering solutions are available based on the operational conditions of railway operators and maintenance depots.

• Inquiry

  For technical consultation, customized solutions, and application discussions regarding the SL50E Electric Shunter, please contact our engineering team. We will provide prompt and professional support.
