TORPEDO LOADER (RC-LB-150-1)

Torpedo Loader (RC-LB-150-1)

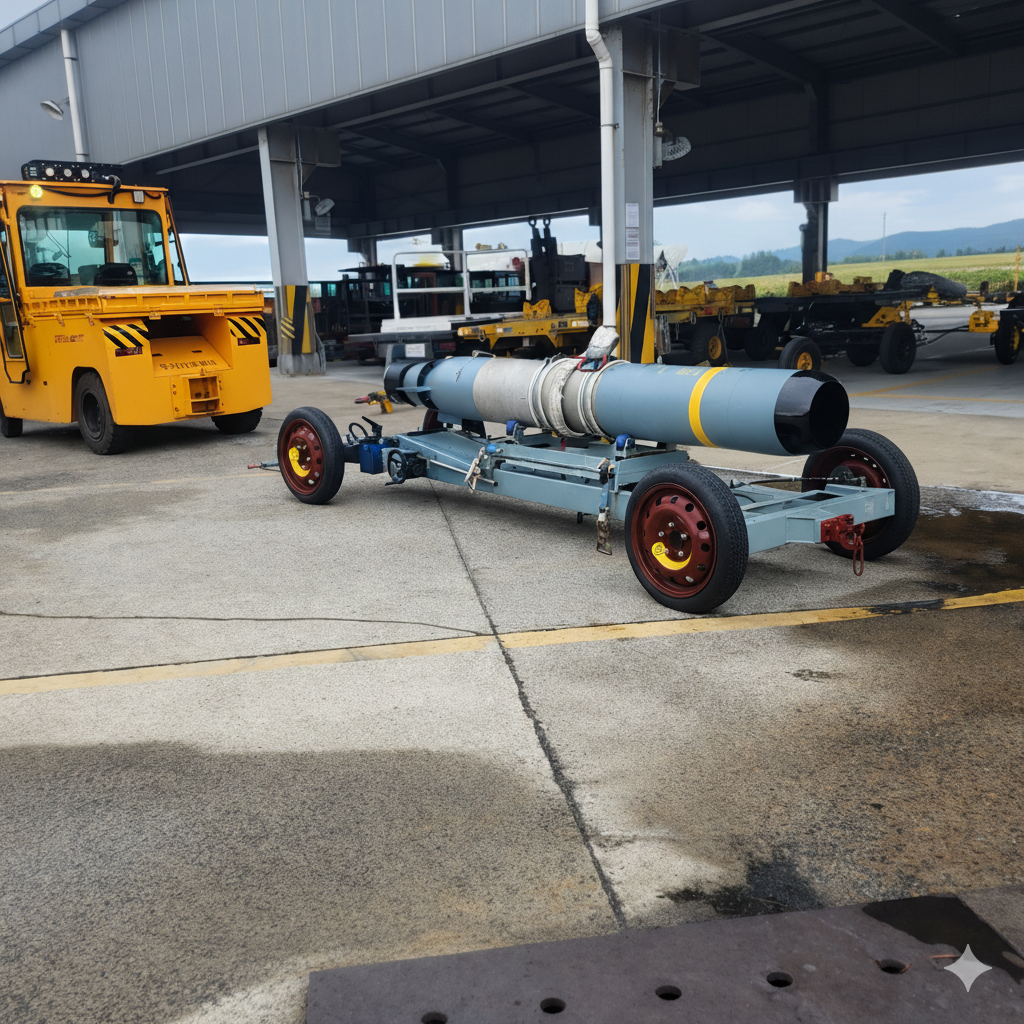

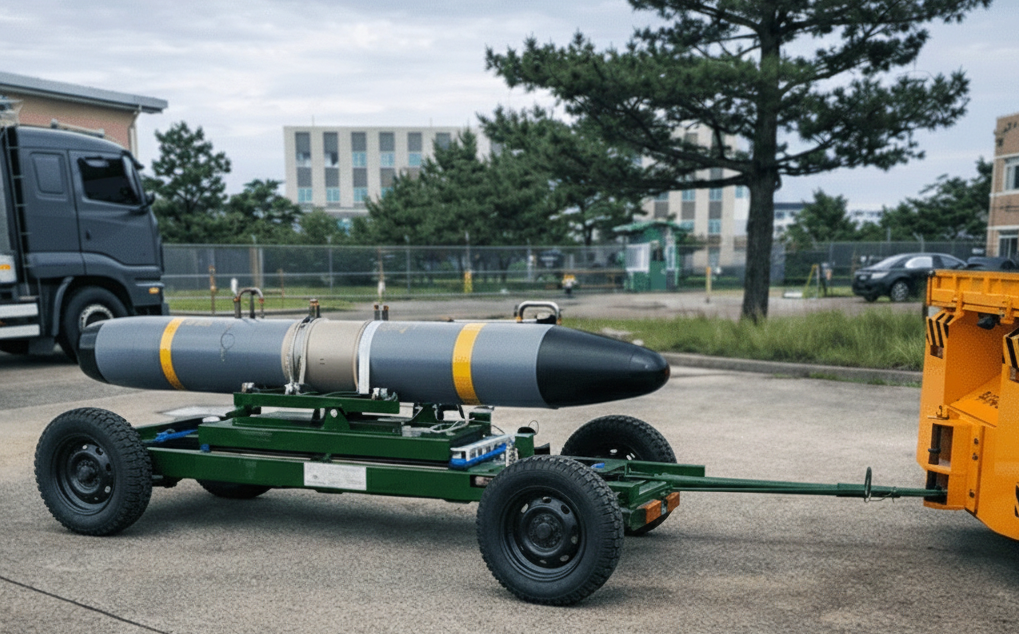

The RC-LB-150-1 Torpedo Loader is a high-performance hydraulic lifting system designed for the safe handling and transportation of military torpedoes and heavy munitions.

Equipped with a 360° rotating table and multi-axis angle adjustment capability, it enables precise loading and positioning operations while maintaining structural stability for heavy payloads.

The system incorporates a hydraulic drive mechanism and towing mobility to enhance operational convenience and safety. Designed to meet military operational standards, it delivers reliable performance in demanding environments.

Detailed specifications can be customized according to user requirements for flexible field application.

Supply Record: Republic of Korea Navy, Army

• Key Features

• Maximum Lifting Capacity:
  2,250 lbs (approx. 1,020 kg)

• Lifting Type:
  Vertical lifting system

• Hydraulic System:
  Dual-stage hydraulic pump (Hydraulic Driven)

• Safety Locking System:
  Locking device to prevent rotation during movement

• Towing Device:
  Wheel-type towing configuration (detachable)

• Key Advantages

• High Lifting Capacity
  Capable of lifting up to 2,250 lbs.

• Precision Control System
  360° table rotation with adjustable tilt angles.

• Secure Locking Mechanism
  Integrated safety locking device prevents unwanted rotation during transport.

• Hydraulic Drive System
  Dual-stage hydraulic lifting system for stable and powerful operation.

• Enhanced Operational Convenience
  Front steering and braking system for improved maneuverability.

---

---

• Main Specifications

• Maximum Lifting Capacity: 2,250 lbs

• Table Angle Adjustment Range:

  • Yaw: ±15°

  • Tilt: ±30°

  • Roll: 360°

• Front Steering Rotation Radius: 40° ~ 45°

• Total Weight: approx. 1,100 lbs

• Lifting Type: Vertical lifting

• Hydraulic System: Dual-stage hydraulic pump (Hydraulic Driven)

• Towing System: Wheel-type towing (detachable)

• Applications & Benefits

• Military Torpedo Handling and Loading Operations
  Integrated with military weapon systems for lifting and transport tasks.

• High Precision Positioning
  Stable and accurate loading through multi-axis table control.

• Reduced Maintenance Cost
  Improved operational efficiency minimizes long-term maintenance expenses.

• Operational Flexibility
  Towing and steering systems allow easy relocation within bases and facilities.

• Custom Adaptability
  Structure and specifications adjustable according to mission requirements.

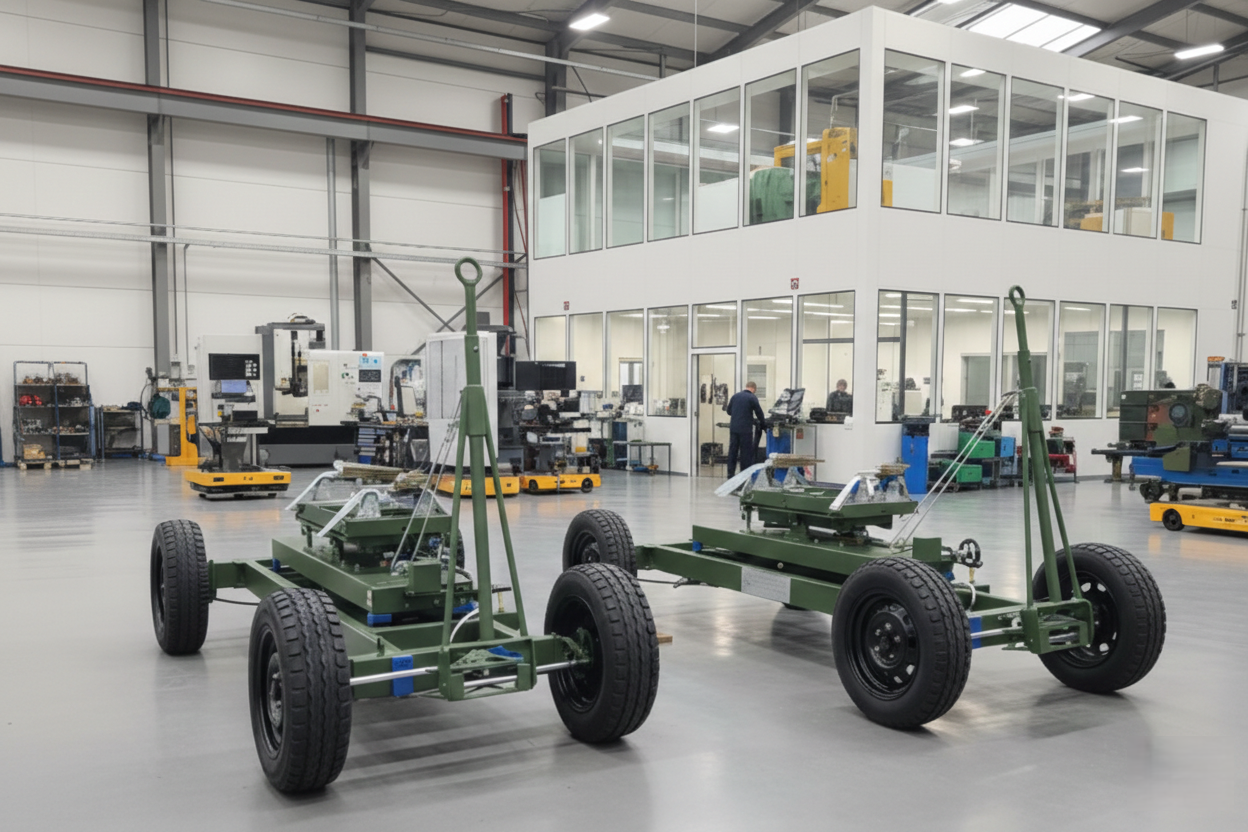

• CUSTOM Manufacturing

  This equipment can be customized according to torpedo dimensions, lifting capacity requirements, and operational environments. Table structure, steering configuration, locking mechanisms, and other detailed specifications can be tailored to meet military operational standards and user-specific demands.

• Inquiry

  For specification discussions, single unit supply, or military application consultation regarding the Torpedo Loader (RC-LB-150-1), please contact our technical team at any time.
