Wet Hull Cleaning System (MODEL : GT-800-E1)
Wet Hull Cleaning System
(MODEL : GT-800-E1)
The GT-800-E1 Wet Hull Cleaning System is a high-pressure water jet solution designed for underwater hull maintenance and heavy-duty surface cleaning applications.

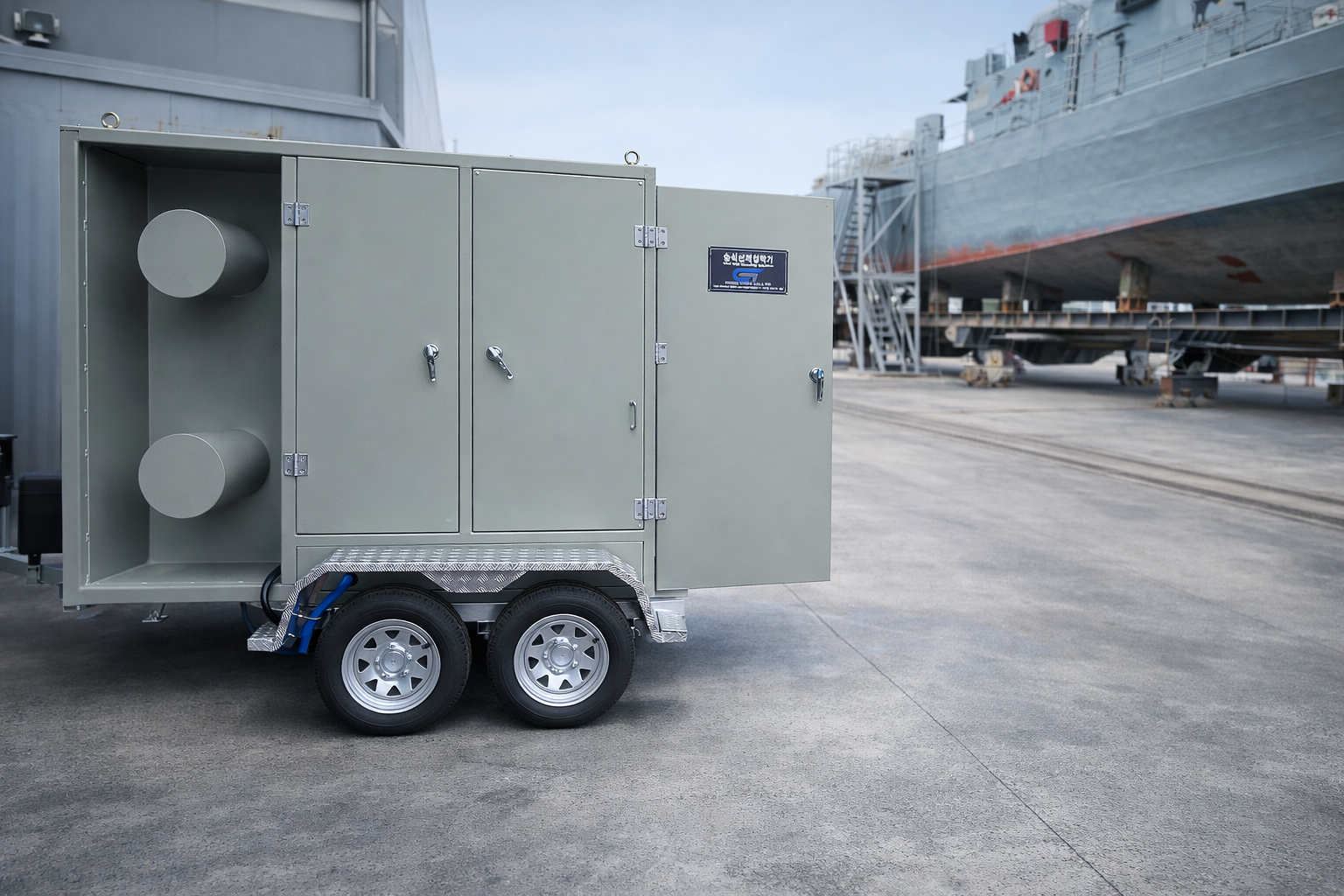

Mounted on a trailer for superior mobility, the system operates without chemical detergents, delivering environmentally friendly yet highly effective cleaning performance.
Equipped with a high-pressure plunger pump and stable pressure control system, the GT-800-E1 ensures consistent cleaning quality under various field conditions.
Key Features
• Application
Underwater hull maintenance and heavy contamination removal• Operating Pressure Range
500 – 800 bar• Maximum Flow Rate
30 LPM• Motor Specification
35 kW, 3 Phase, 440V / 60Hz × 2• Pump Speed
Up to 1,450 rpm• Pressure Control System
Adjustable 500 bar with integrated check valves• Protection & Safety System
Safety valve, overload protection, lubrication oil temperature control (≤90℃), water supply temperature control (≤60℃)
Key Advantages
• Ultra-High Pressure Cleaning Capability
Operating pressure up to 800 bar for powerful surface removal• High Flow Operation Range
Stable performance within 20–30 LPM• Eco-Friendly Cleaning Method
Chemical-free high-pressure water cleaning• Trailer-Mounted Design
Easy transport and rapid field deployment• Dual High-Pressure System Configuration
Two independent cleaning systems integrated in one unit
Main Specifications
• Model
GT-800-E1 (Electric Motor Type, Trailer Mounted)• Pressure Range
500 – 800 bar• Flow Rate
20 – 30 LPM• Motor Power
35 kW × 2
3 Phase 440V / 60Hz• Tank Capacity
SUS 180L × 2• Hose Specification
3/8″ High-pressure hose × 60 m + hose reel × 2• Trailer Structure
Towing type, solid tires, dual-axle configuration
Applications & Benefits
• Railway & Heavy Equipment Cleaning
Removal of rust and scale using concentrated high-pressure washing• Military Equipment Maintenance
High-flow operation for large surface cleaning• Shipyard & Plant Cleaning
Pipelines, heat exchangers, decks, and industrial structures• Surface Preparation
Pre-coating cleaning and mechanical part degreasing• Improved Cleaning Quality
Stable pressure above 500 bar ensures uniform cleaning performance
CUSTOM MANUFACTURING
• This system can be custom-built according to required pressure range, flow capacity, motor output, and trailer configuration.
• Design specifications can be tailored based on vessel size, operating environment, and site power conditions.
• Dedicated engineering support is available to meet marine, railway, defense, and industrial cleaning standards.
EQUIPMENT MANUFACTURING & INQUIRY
For specification consultation, system configuration, high-pressure water jet system development, or applications in marine, railway, and defense facilities,
please feel free to contact us at any time.
