MULTIPURPOSE BOMB LOADER (GA-UB-150)
MULTIPURPOSE BOMB LOADER (GA-UB-150)
GA-UB-150 is a manually operated hydraulic multipurpose bomb loader designed based on actual military operational environments.

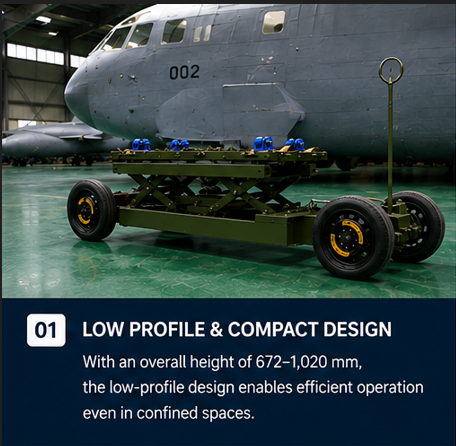

The equipment supports safe lifting, transportation, and loading operations for various military ammunition and defense support equipment while maintaining stable operation even in restricted working areas through its low-profile and compact structure.
The system is designed considering operational requirements in aircraft, naval, and military maintenance environments, and can flexibly respond to various working conditions through its multi-axis adjustment structure and towing system.

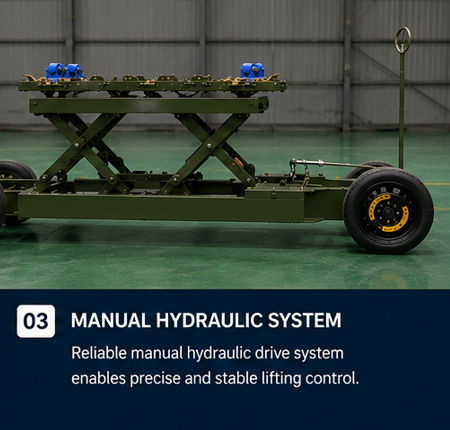

In addition, the manually operated hydraulic lifting system provides reliable lifting performance together with maintenance convenience and operational stability.
Supply Reference : Republic of Korea Navy / Military Maintenance Support Sector
KEY FEATURES
• Maximum Lifting Capacity:
2,250 lbs (approx. 1,020 kg)• Lifting Type:
Vertical lifting system• Hydraulic System:
Dual-stage hydraulic pump (Hydraulic Driven)• Safety Locking System:
Locking device to prevent rotation during movement• Towing Device:
One-touch locking towing hook configuration (detachable)
KEY ADVANTAGES
▪ POWERFUL LIFTING CAPABILITY
Supports lifting operations up to approximately 2,250 lbs.▪ PRECISE ADJUSTMENT SYSTEM

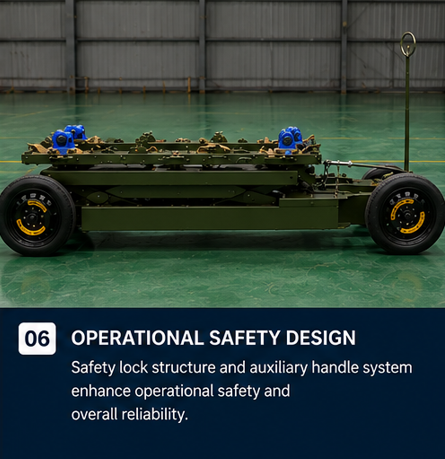

Table motion and angle adjustment available for accurate positioning.▪ SAFETY LOCKING STRUCTURE
Equipped with a locking mechanism to prevent unwanted table rotation during movement.▪ HYDRAULIC DRIVEN SYSTEM
Provides stable two-stage hydraulic lifting operation.▪ ENHANCED OPERATIONAL CONVENIENCE

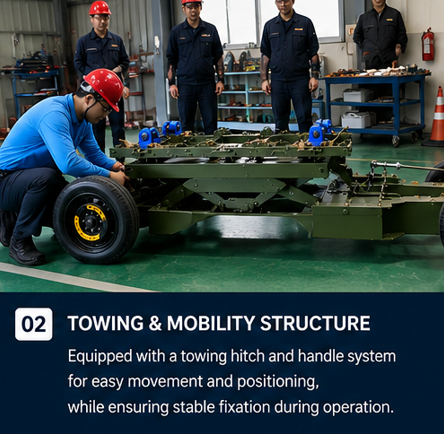

Front steering and towing structure improve mobility and field operation efficiency.
MAIN SPECIFICATIONS (CUSTOMIZABLE)
• Maximum Lifting Capacity : 2,250 lbs
• Table Motion Range
Yaw : ±15°
Tilt : ±30°
Roll : 360°
• Front Steering Turning Radius : 40° ~ 45°
• Total Weight : approx. 1,000 lbs
• Lifting Type : Vertical Lifting
• Hydraulic System : Dual-stage Hydraulic Pump (Hydraulic Driven)
• Towing Hook : One-touch Locking Type (Detachable)
APPLICATIONS & OPERATIONAL BENEFITS

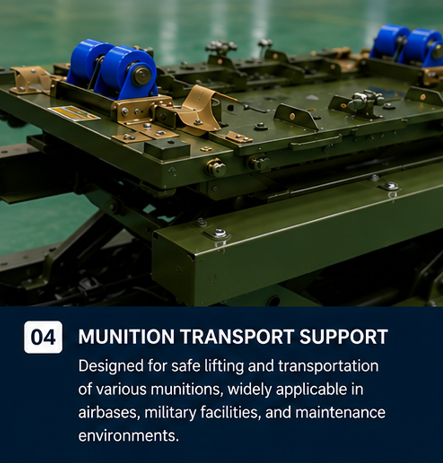

▪ MILITARY AMMUNITION LOADING OPERATION
Supports lifting and loading operations linked with military weapon systems.
▪ PRECISION LOADING OPERATION

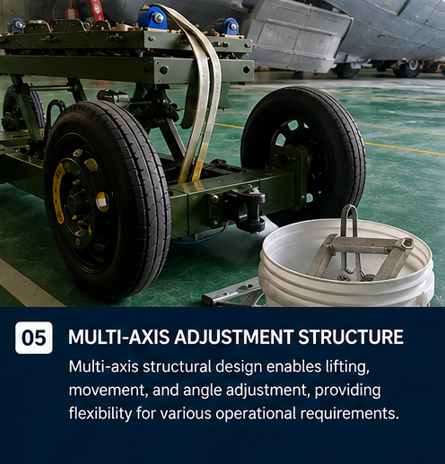

Multi-axis rotating table enables stable and accurate positioning.
▪ REDUCED OPERATIONAL COST
Improved operational efficiency and simplified maintenance structure reduce maintenance costs.
▪ IMPROVED OPERATIONAL CONVENIENCE
Towing hook and steering structure provide easy transportation and field movement.
▪ CUSTOM MANUFACTURING AVAILABLE
Structural configuration and specifications can be modified according to user requirements.
CUSTOM Manufacturing
This equipment can be customized according to torpedo dimensions, lifting capacity requirements, and operational environments. Table structure, steering configuration, locking mechanisms, and other detailed specifications can be tailored to meet military operational standards and user-specific demands.
Inquiry
For specification discussions, single unit supply, or military application consultation regarding the Torpedo Loader (GA-UB-150), please contact our technical team at any time.
