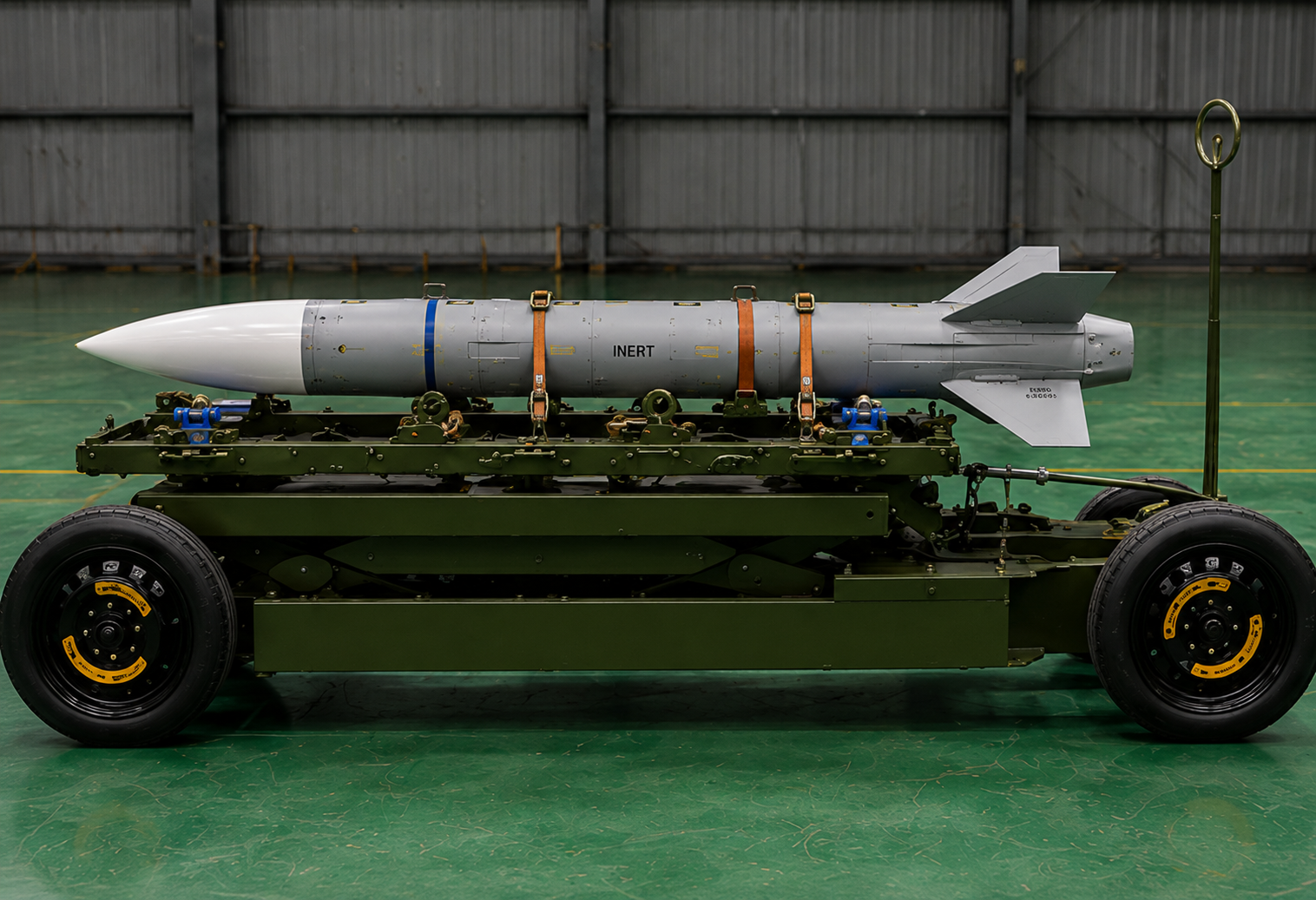

Multi-Purpose Loader (BOMB LOADER) GA-UB-150
To support the safe lifting, transportation, and loading of military torpedoes, munitions, and various defense logistics equipment used by the Republic of Korea Navy and military maintenance units, GAON TECH successfully completed the design, manufacturing, testing, and delivery of the GA-UB-150 Multi-Purpose Loader (BOMB LOADER).

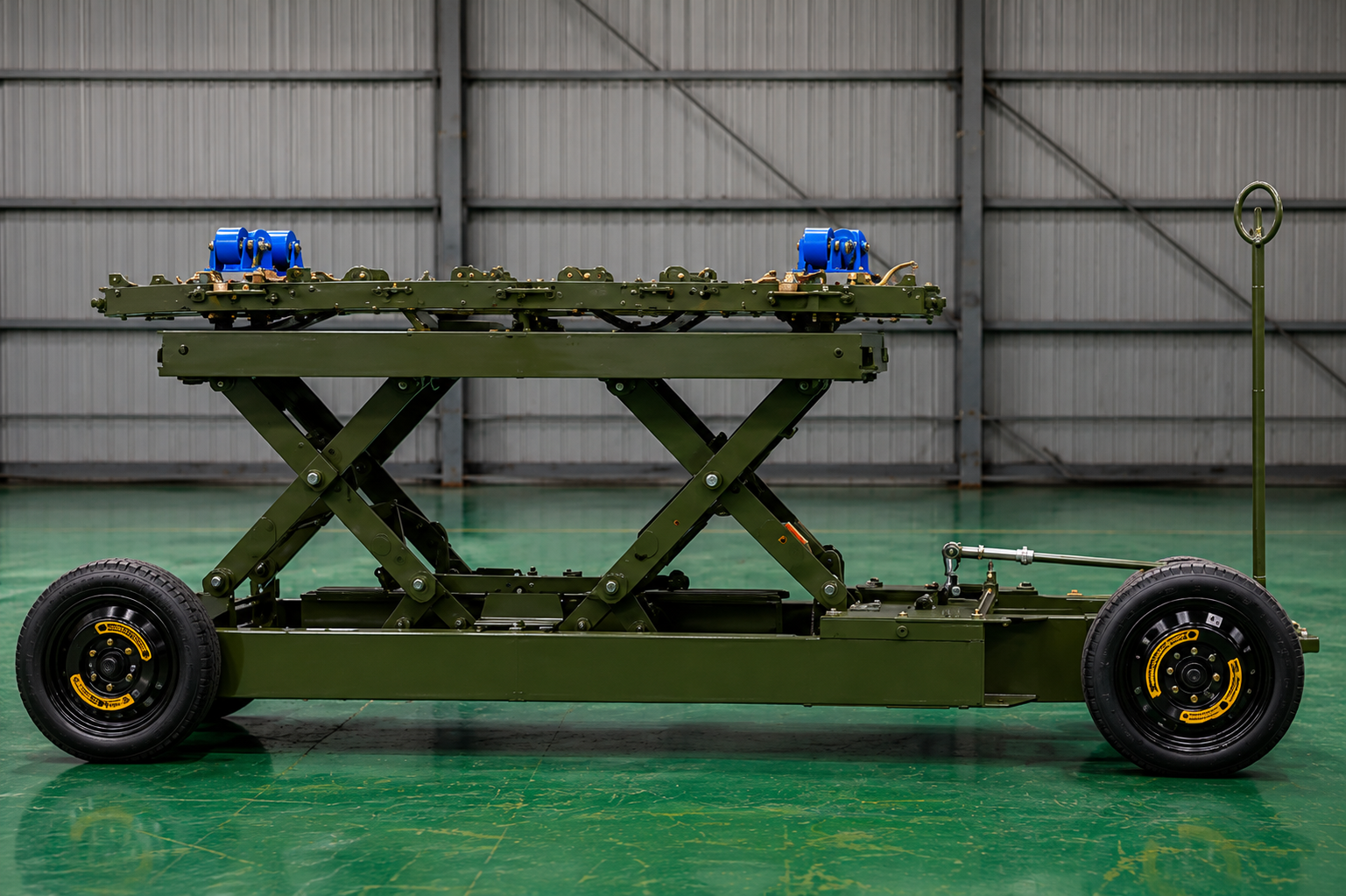

This project was developed to meet the demanding operational requirements of military weapon handling and logistics support environments. The system incorporates a manually operated hydraulic lifting mechanism and a multi-axis positioning structure to ensure both operational safety and precise load handling.
In addition, a low-profile and compact vehicle structure was adopted to maximize maneuverability within confined operational areas. The design was optimized for mobility, durability, and maintainability in aircraft hangars, naval vessels, and military maintenance facilities.
Client
Republic of Korea Navy and Military Maintenance Units
Year
11/11/2025
Project Background & Requirements

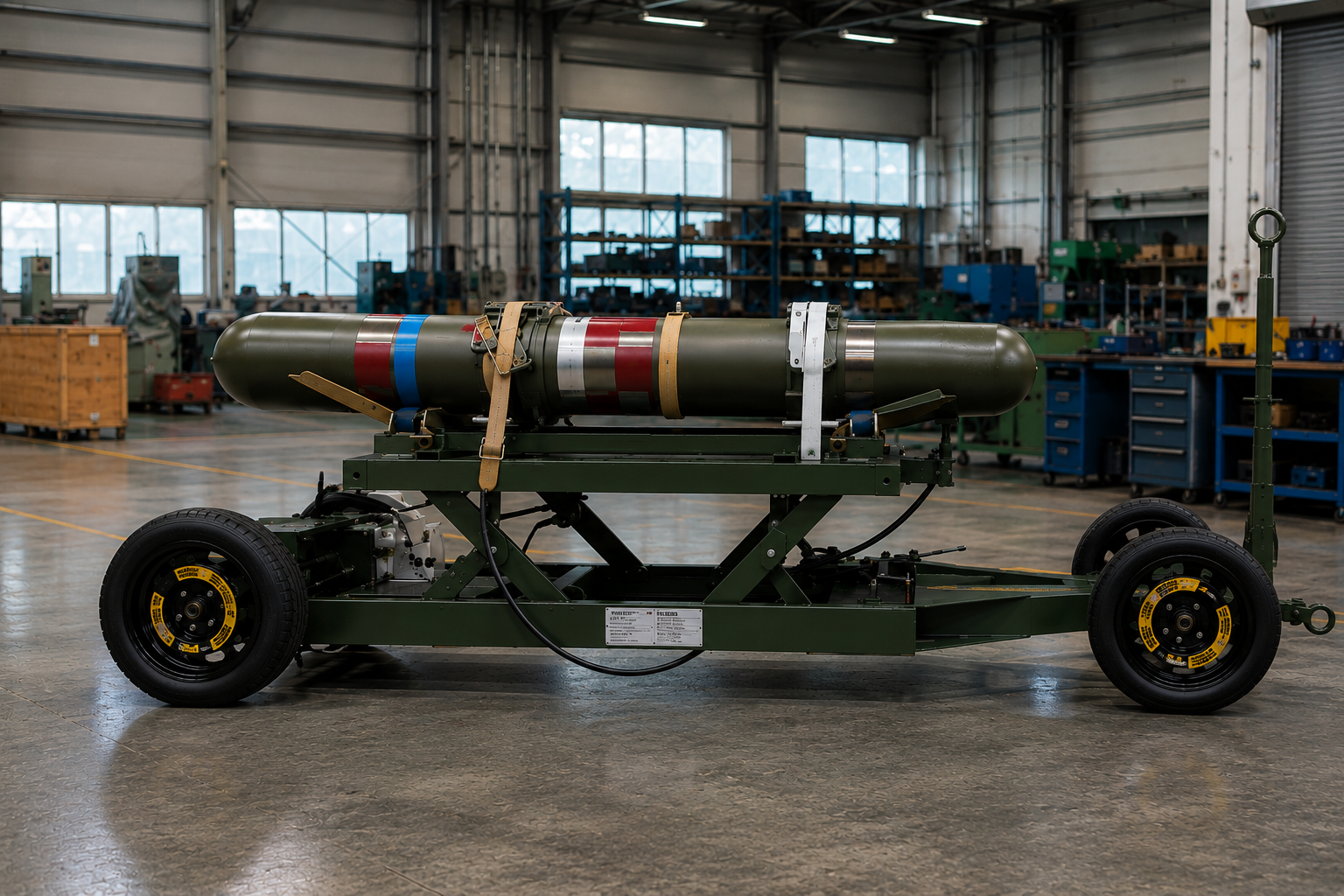

Military torpedoes, munitions, and logistics equipment are often handled in highly specialized environments where heavy loads, limited workspace, and strict safety requirements must be addressed simultaneously.
Particularly within naval aviation squadrons, ammunition loading facilities, and military logistics support units, there is a continuous need for equipment capable of transporting and positioning a wide variety of weapon systems safely, accurately, and efficiently.
Furthermore, shipboard compartments and aircraft hangars impose strict dimensional constraints, requiring a highly maneuverable, low-profile solution suitable for confined operating environments.
The customer established the following key operational requirements:
Safe lifting, transportation, and loading of various military munitions and equipment
Excellent maneuverability within confined operational spaces
Low-profile structure suitable for shipboard and hangar operations
Stable operation on naval vessels and military maintenance facilities
Compatibility with various weapon and payload configurations
Multi-axis positioning capability for precise alignment
Load stabilization during transportation
High durability with minimal maintenance requirements
Proven reliability and safety under actual military operating conditions
Based on these requirements, GAON TECH conducted extensive operational analysis and structural engineering studies to develop a system optimized for military weapon handling applications.

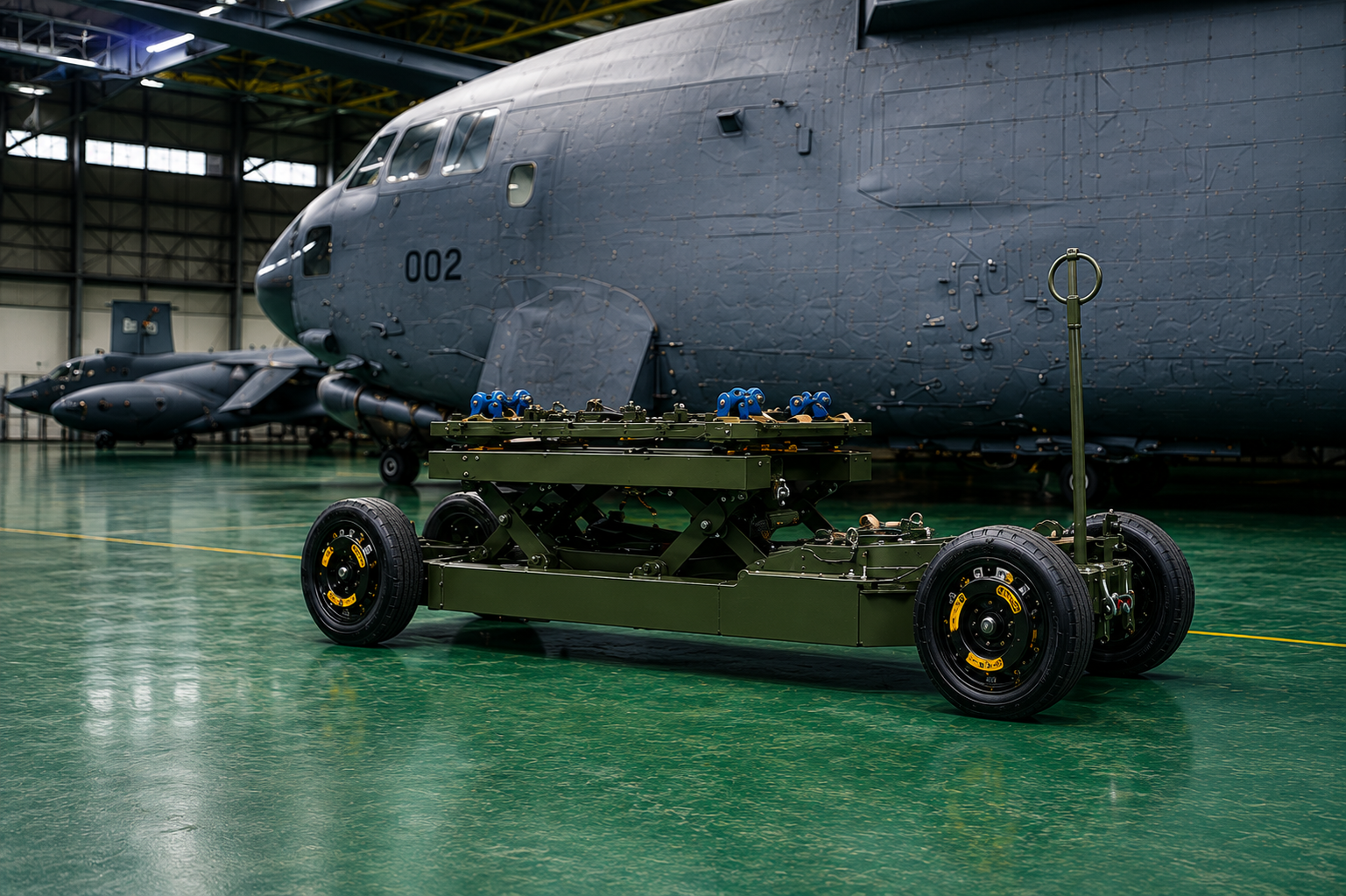

Unlike conventional lifting equipment, the GA-UB-150 utilizes an ultra-low-profile chassis design, enabling smooth operation within ship compartments, aircraft hangars, maintenance facilities, and other restricted-height environments.
A reinforced structural frame and optimized center-of-gravity design were also incorporated to ensure stable operation under demanding naval and military conditions.
As a result, the system provides safe and efficient handling of a wide range of military munitions and logistics equipment.
Multi-Axis Rotation & Precision Steering System
The GA-UB-150 was developed to support highly accurate weapon loading and maintenance operations through a precision multi-axis positioning platform.
Table Motion Capability
Roll Rotation: 360°
Yaw Adjustment: ±15°
Tilt Adjustment: ±30°
Front Steering System for enhanced maneuverability
Mechanical safety lock to prevent unintended rotation during transportation
These features allow operators to perform precise alignment and positioning tasks while maintaining a high level of operational safety.

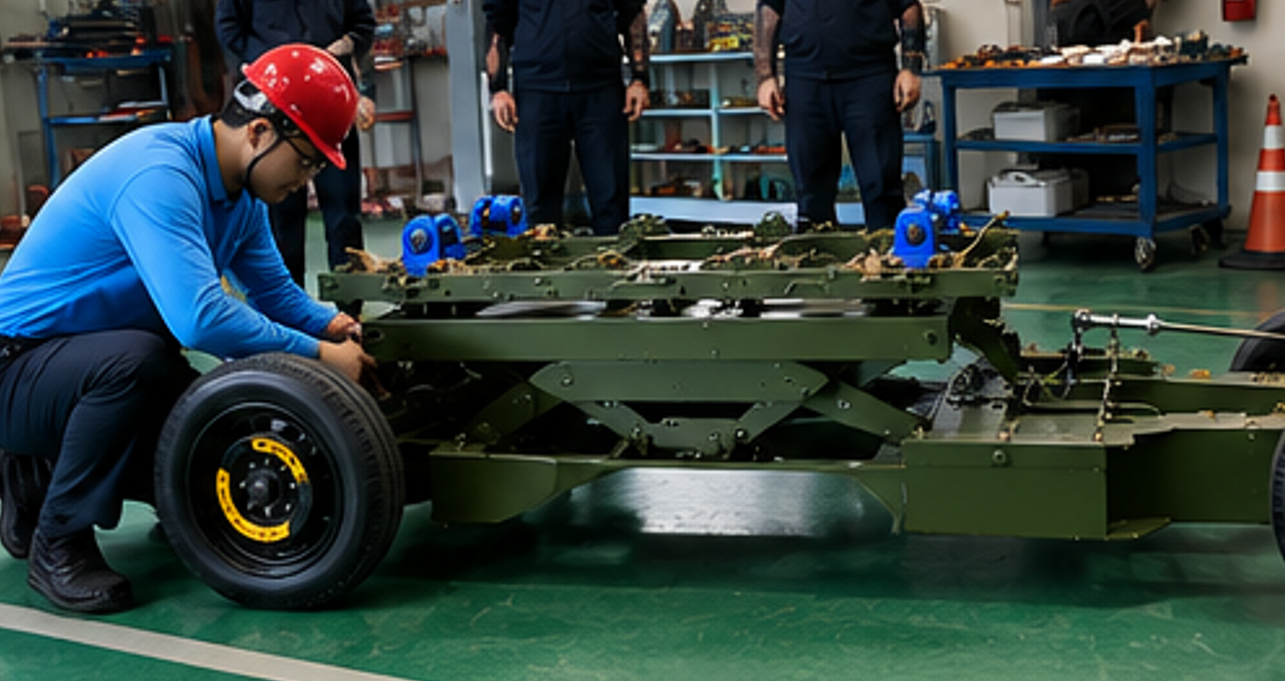

Structure, Manufacturing & Quality Control
The GA-UB-150 was engineered and manufactured based on actual military operating environments and maintenance requirements.
Key design features include:
Heavy-duty structural frame designed for high lifting loads
Proven hydraulic lifting system utilizing industrial-grade components
Optimized chassis design for stability during transportation and steering
Integrated safety mechanisms for secure load handling
Maintenance-friendly configuration for long-term operation
Through these design principles, the system achieves the durability, reliability, and operational performance required for military logistics and weapon support operations.
Conclusion
The GA-UB-150 Multi-Purpose Loader project demonstrates GAON TECH's capability to fully understand military operational requirements and transform them into reliable engineering solutions.
By combining practical field experience with advanced design and manufacturing expertise, GAON TECH continues to provide safe, dependable, and mission-ready equipment for defense and military support applications.
As a trusted partner in the defense industry, GAON TECH remains committed to delivering high-quality special-purpose equipment and comprehensive lifecycle support services to military customers worldwide.
Manufacturer
GAON TECH Co., Ltd.
E-mail
sales@gaontech.org
Website
www.gaon-tech.com
Product Model
GA-UB-150 Multi-Purpose Loader (BOMB LOADER)
