1,000-Ton Wire Rope Swaging Press (gt-hp-1000)

1,000-Ton Wire Rope Swaging Press

(GT-HP-1000)

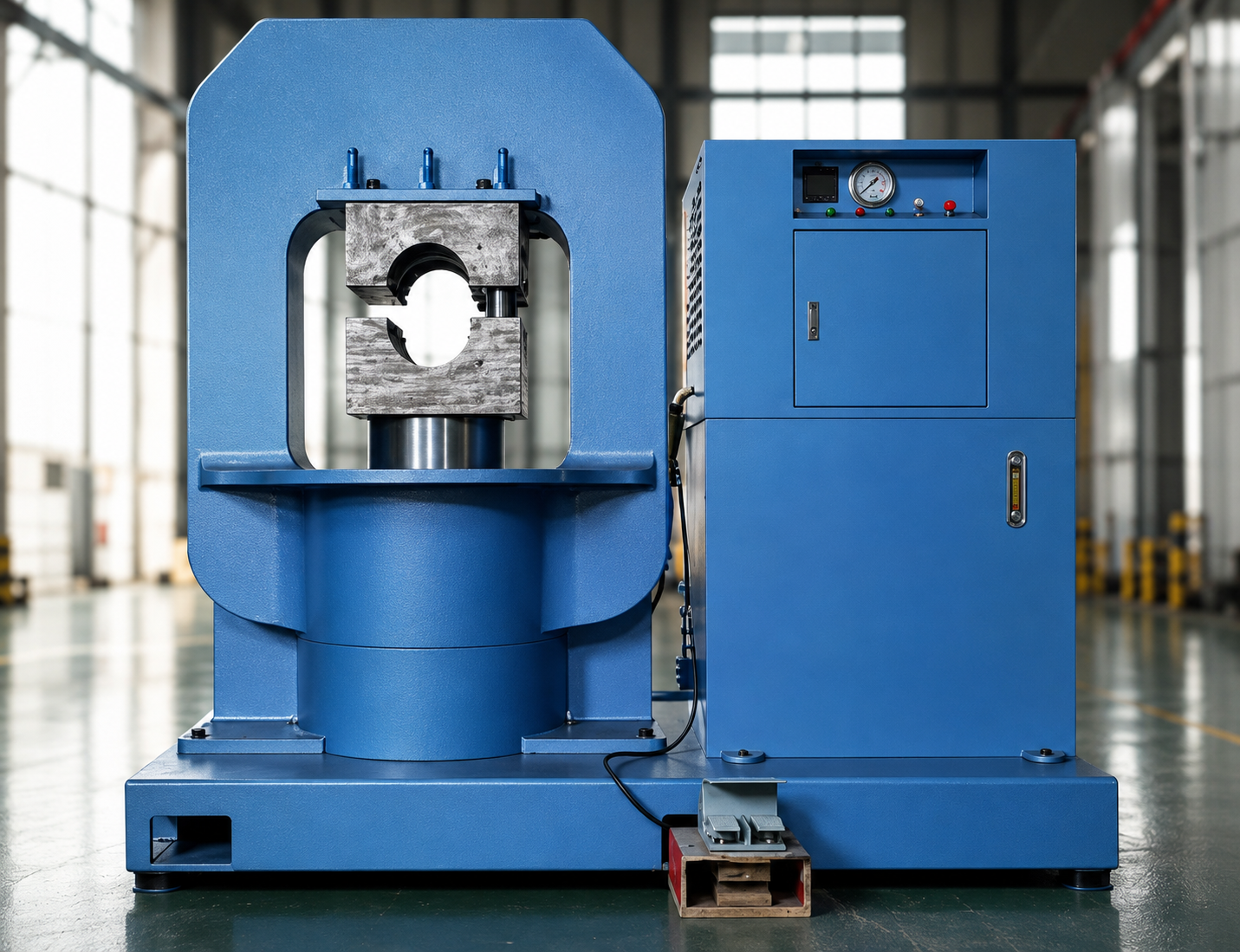

The GT-HP-1000 is a high-capacity hydraulic wire rope swaging press designed and manufactured for forming and finishing wire-rope eyes used in naval vessel maintenance and heavy lifting applications.

With a maximum pressing capacity of 1,000 tons, the machine provides reliable swaging of large-diameter wire ropes and aluminum ferrules. It supports the production of secure wire-rope terminations and helps prevent loosening or separation during heavy-load lifting operations.

The equipment uses interchangeable dies and adapters selected according to the wire-rope and ferrule dimensions. The operating pressure can be precisely set and monitored, and the piston automatically stops when the preset pressure is reached.

Push-button and foot-switch controls provide convenient operation, while the emergency stop, pressure gauge, independent electrical circuit breaker, safety interlock, and work-zone detection system enhance operator safety and equipment reliability.

Supply Reference: Republic of Korea Navy Logistics Command

Key Features

• Maximum Pressing Capacity:
  1,000 tons

• Applicable Swaging Range:
  Ø14–38mm or larger

• Drive System:
  High-pressure hydraulic system

• Control Method:
  Push-button and foot-switch operation

• Pressure Control:
  Real-time pressure indication and automatic stop at preset pressure

• Safety System:
  Emergency stop, safety interlock, work-zone detection sensor, and independent electrical circuit breaker

Key Advantages

• Powerful 1,000-Ton Pressing Capacity
  Provides up to 1,000 tons of pressing force for reliable swaging of large-diameter wire ropes and ferrules.

• Precise Pressure Control System
  Allows the operator to set and monitor the required pressure according to the wire-rope and die specifications.

• Automatic Stop at Preset Pressure
  The piston automatically stops when the specified pressure is reached, supporting consistent and reliable swaging quality.

• Wide Range of Wire-Rope Applications
  Interchangeable dies and adapters accommodate various wire-rope diameters and ferrule configurations.

• Enhanced Safety and Operating Convenience
  Foot-switch operation, emergency stop, safety interlock, and presence-sensing protection provide a safer working environment.

---

---

• Main Specifications (Customizable)

• Model: GT-HP-1000

• Maximum Pressing Capacity: 1,000 tons or greater

• Applicable Swaging Range: Ø14–38mm or larger

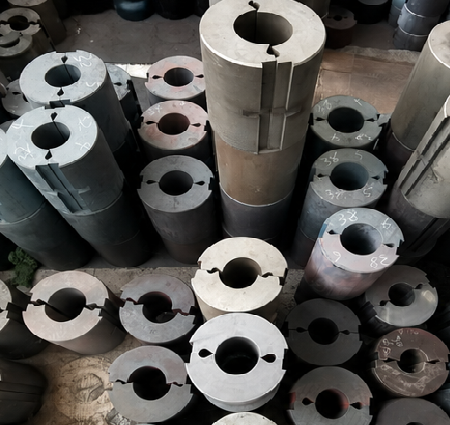

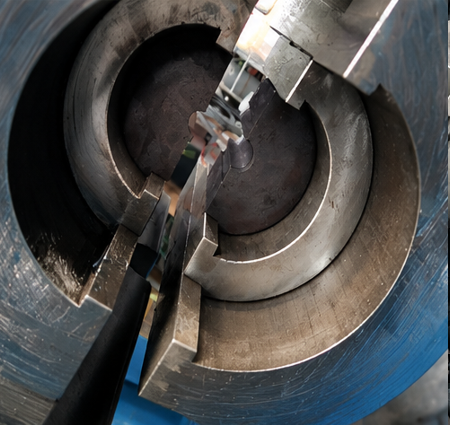

• Die Configuration: Sixteen sizes from Ø8 to Ø38mm in 2mm increments

• Operating Stroke: 170mm or less

• Pressing and Compression Clearance: 0–250mm

• Upward Speed: 9.8mm/s or less

• Downward Speed: 1.9mm/s or greater

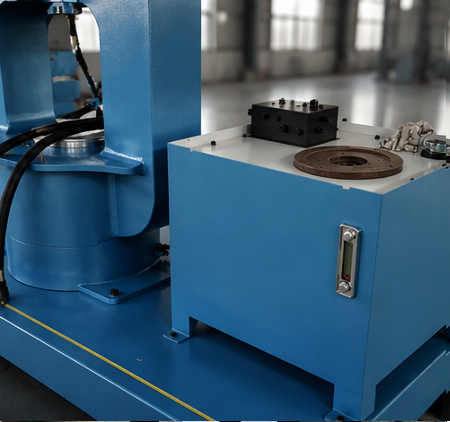

• Drive System: Hydraulic

• Motor Output: 15kW or greater

• Power Supply: AC 380V, 3-phase, 60Hz

• Overall Dimensions: Maximum 2,840(L) × 1,450(W) × 2,600(H)mm

• Equipment Weight: Maximum 12 tons

• Operating Method: Push-button and foot-switch control

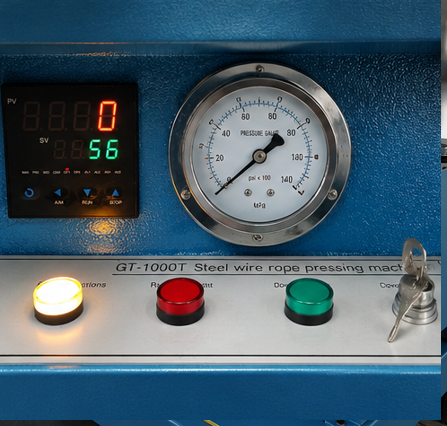

• Pressure Indication: Hydraulic pressure gauge

• Safety Functions: Emergency stop, automatic pressure stop, safety interlock, work-zone detection sensor, and independent circuit breaker

                ※ Specifications may be modified according to the wire-rope diameter, ferrule configuration, required pressing force, and installation environment.

• Applications & Operational Benefits

• Naval Wire-Rope Fabrication and Maintenance
  Supports the fabrication and maintenance of wire-rope eyes and lifting ropes used in naval vessels and maintenance facilities.

• Heavy-Lifting Rope Termination
  Suitable for ferrule swaging and secure end termination of wire ropes used with cranes, hoists, and heavy-lifting systems.

• Shipbuilding and Marine Maintenance
  Applicable to the production and maintenance of large-diameter wire ropes used in shipyards, marine equipment, and port facilities.

• Consistent Swaging Quality
  Preset pressure control and automatic stopping reduce operator-dependent variation and provide repeatable results.

• Improved Safety and Productivity
  Foot-switch control and integrated safety devices improve operating convenience and reduce processing time.

• Multiple Ferrule Configurations
  Custom dies and adapters can be manufactured for straight, tapered, and application-specific ferrule shapes.

• CUSTOM Manufacturing Guide

  The equipment can be customized according to the wire-rope diameter, ferrule material and geometry, required pressing force, operating stroke, and installation environment.

  Pressing capacity, die configuration, working height, hydraulic circuit, control method, safety fence, sensor arrangement, and electrical specifications can be modified to meet customer requirements.

  Integrated support is also available for installation, commissioning, sample swaging, operator and maintenance training, accredited performance testing, and preparation of technical documentation.

• Manufacturing & Inquiry

  For specifications, die and ferrule configurations, custom manufacturing, installation, commissioning, or consultation regarding the GT-HP-1000 1,000-Ton Wire Rope Swaging Press, please contact GAON TECH CO., LTD.
